10ton Hydraulic Metal Punch Kit Red
Features:

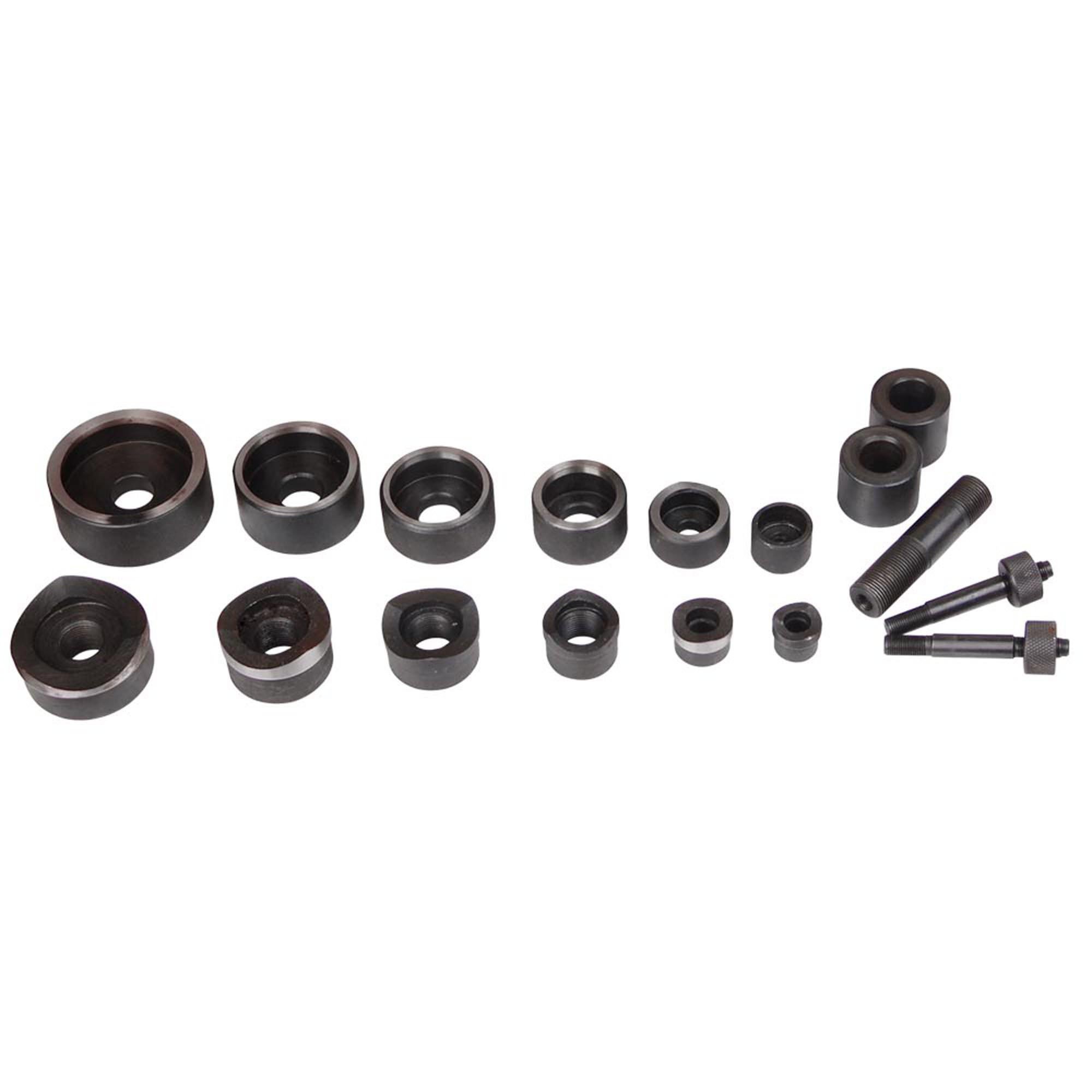

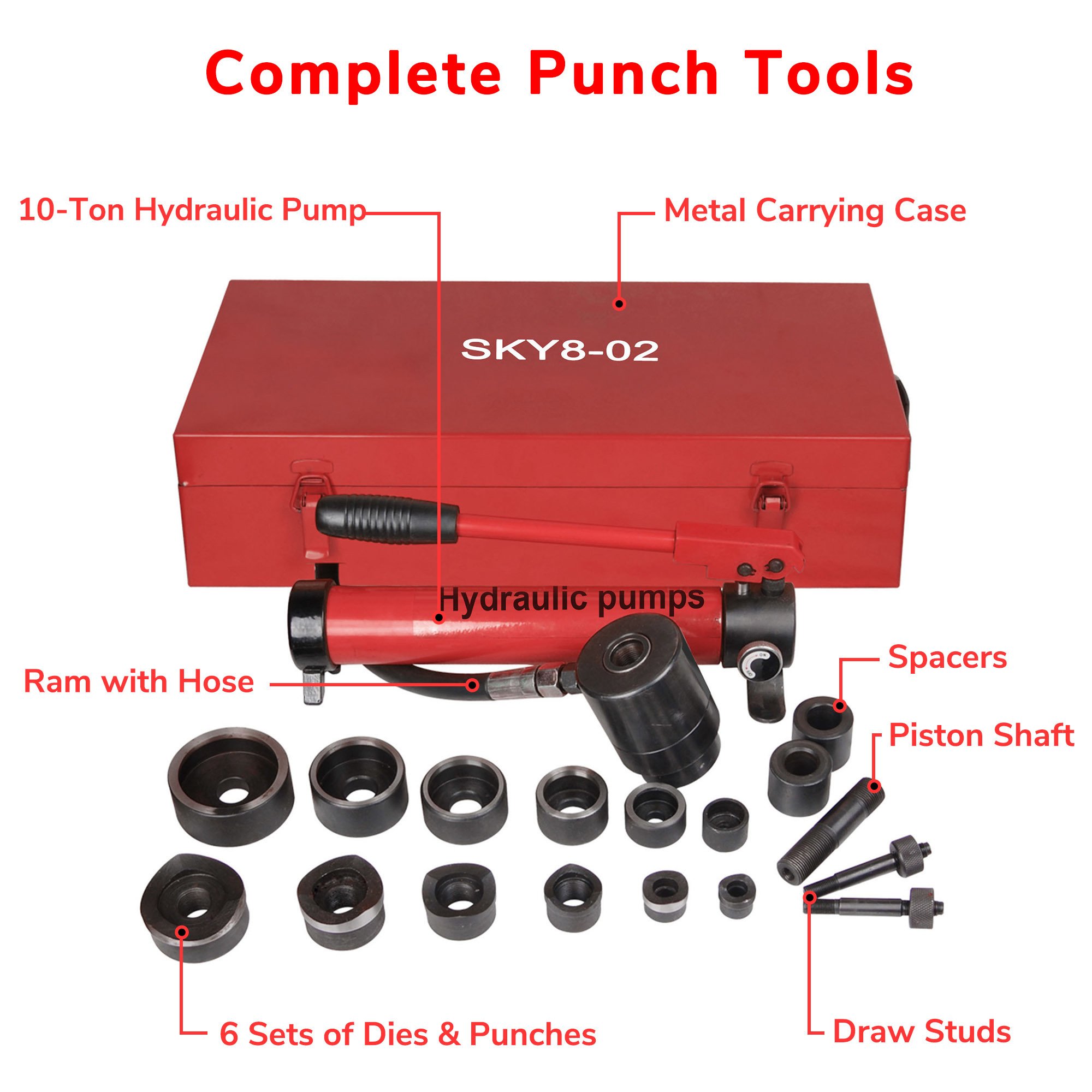

- Complete Punch Tools - Hydraulic punch tool kit features 1pc 10-ton pump; 2pcs draw studs; 1pc piston shaft; 2pcs spacers and 6 sets of interchangeable dies & punches fitting for 1/2"; 3/4"; 1"; 1 1/4"; 1 1/2" and 2" conduit sizes; can drill different sizes holes on stainless steel; iron; steel; aluminum; plastic; etc; 1/8' (11 gauge) max punching thickness for iron and 1/16' (16 gauge) for stainless steel; perfect to be used for different drilling projects

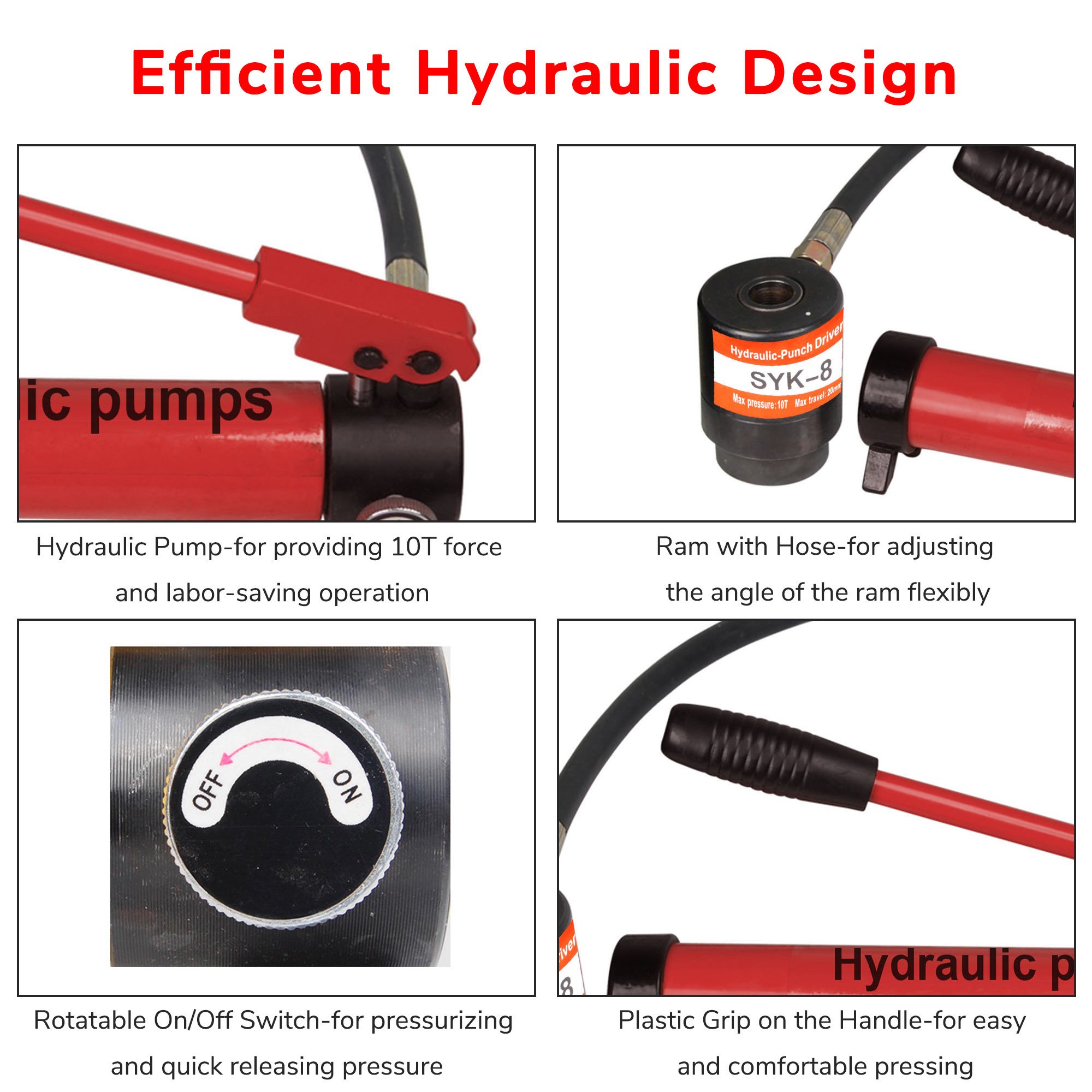

- Efficient Hydraulic Design - Hydraulic mechanism pump produces 10T strong pressure for providing high punching accuracy and fast punching speed on punching uniform holes; more labor-saving and faster than common wrenches; ideal for improving working efficiency; pump with pressure hose for adjusting the angle of the ram flexibly to meet your punching needs; perfect for using in narrow places

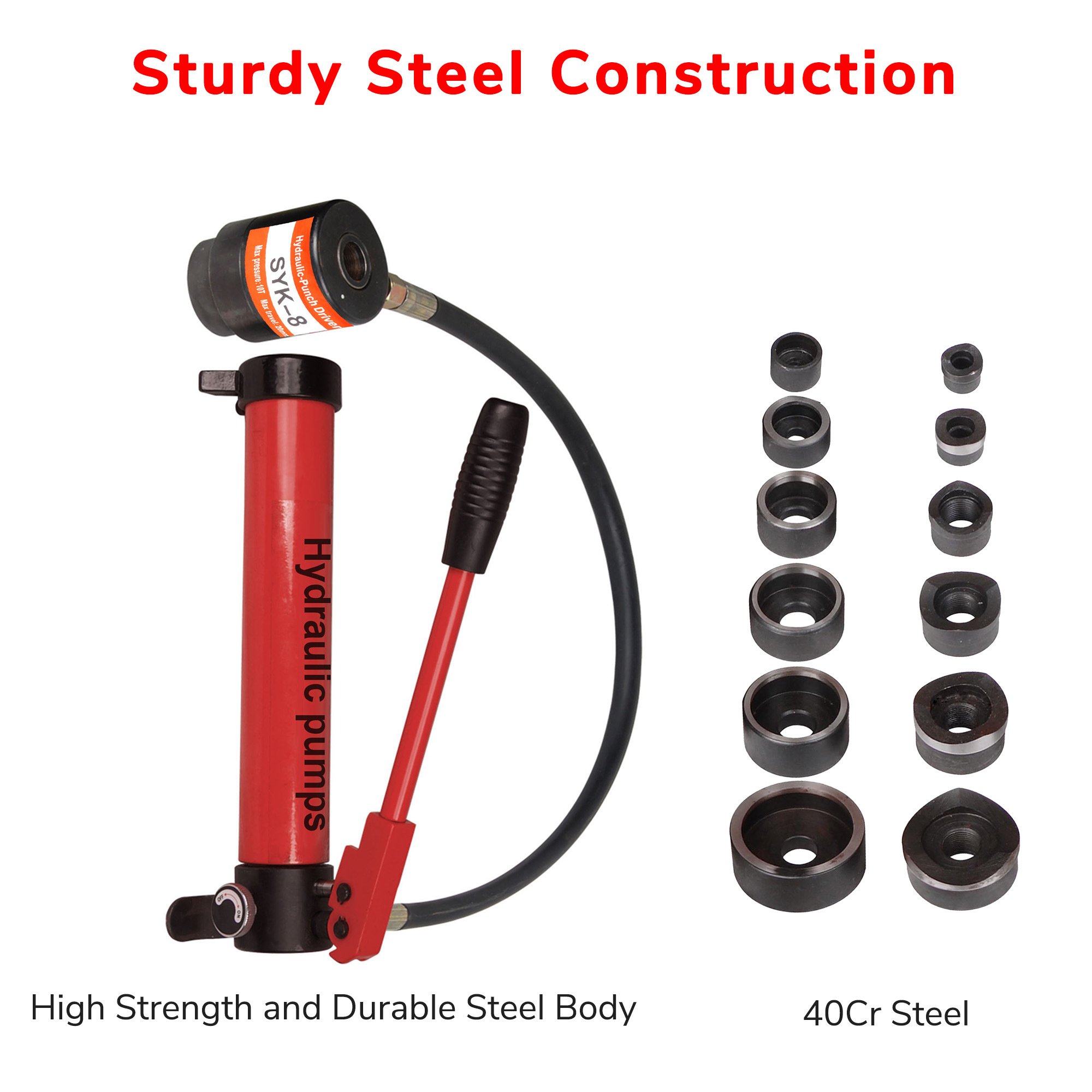

- Sturdy Steel Construction - 40Cr steel dies and steel pump body for ensuring high strength; sturdiness and durability; stable construction is suitable for heavy-duty and frequent punching works

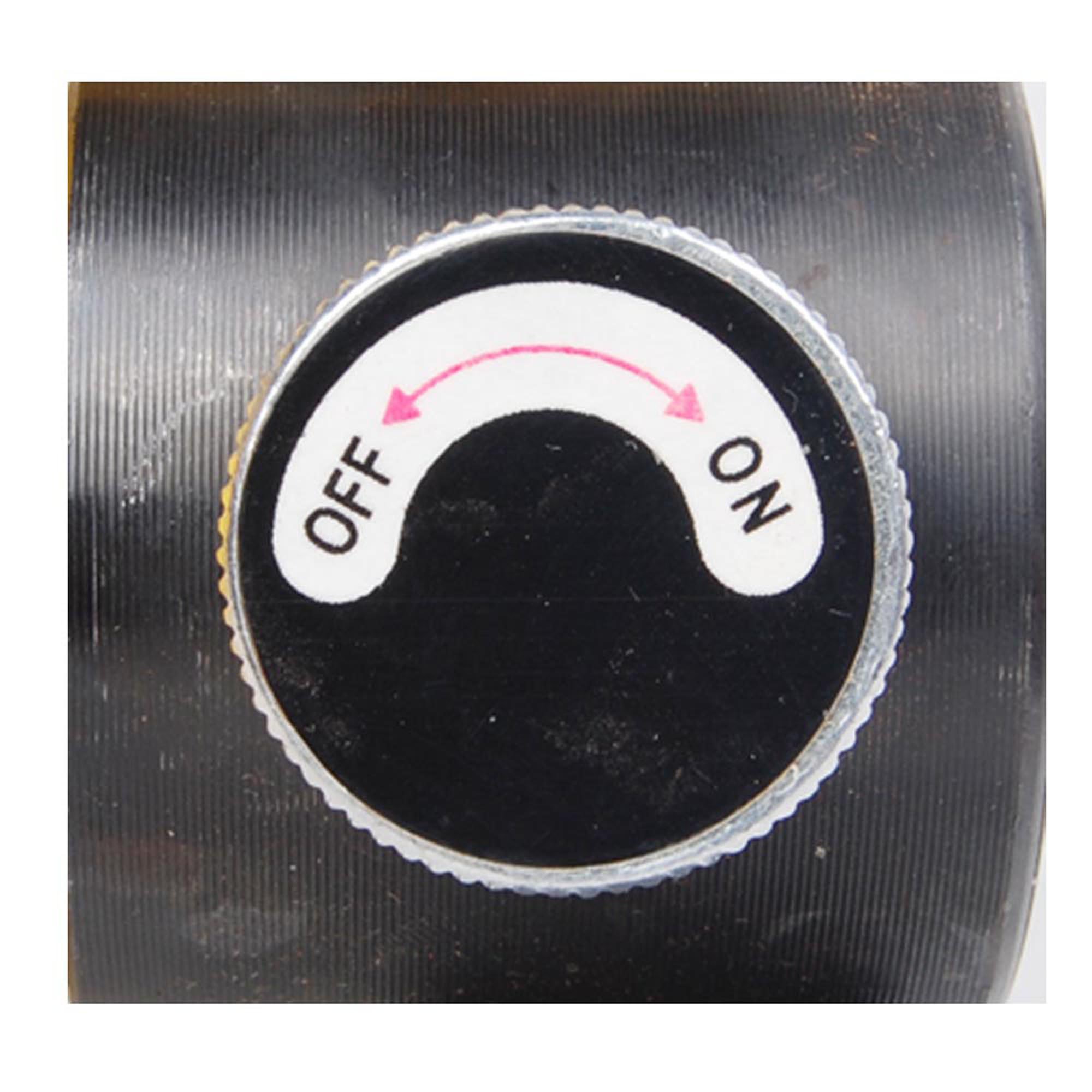

- Convenient Operation - Rotatable "on/off" knob on the pump for quick releasing pressure after drilling holes and safety valve for releasing pressure automatically when the pressure reaches the max value; perfect for adding more safety; anti-skid plastic grip at the end of the handle for easy and comfortable pressing

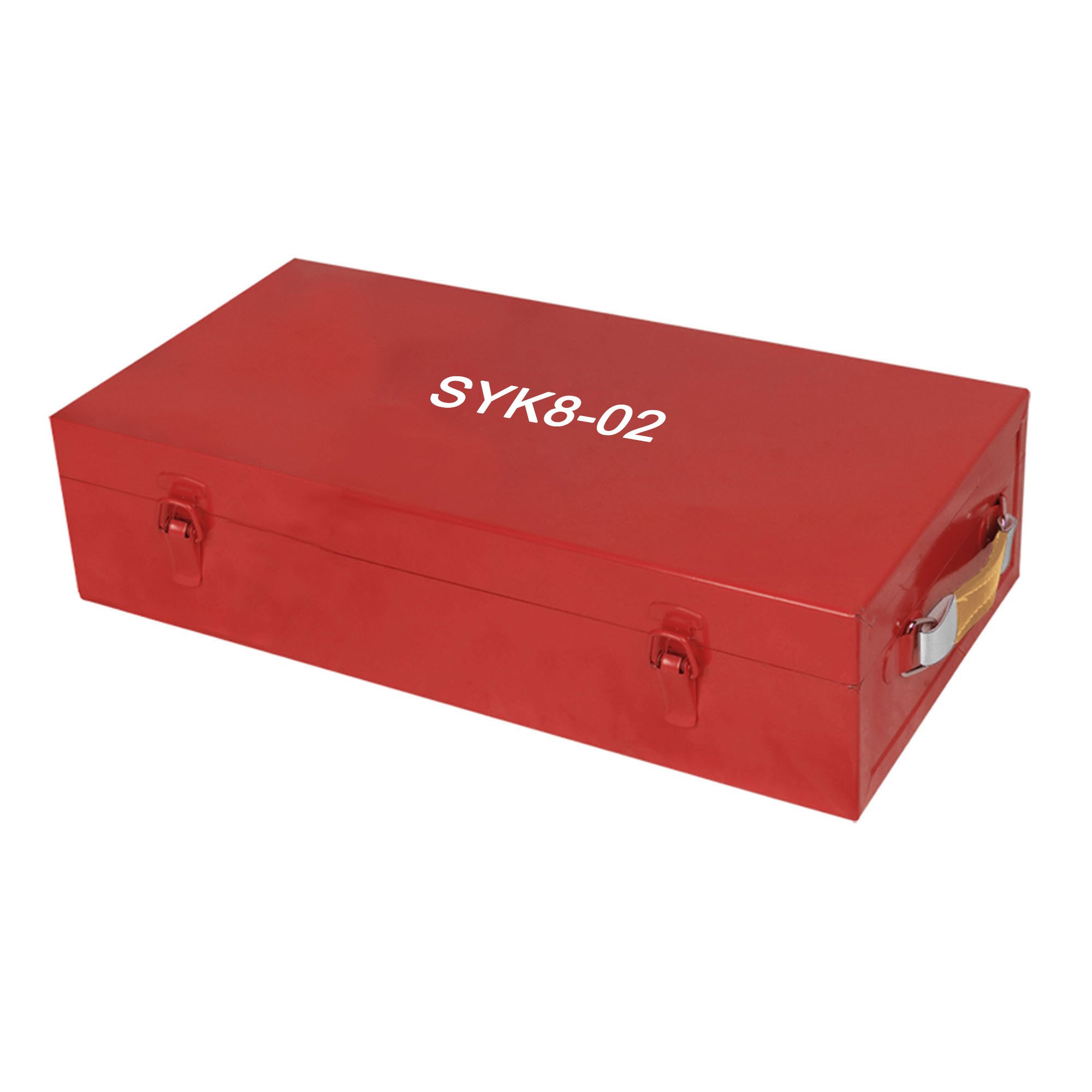

- Portable & Wide Application - Sturdy metal case with handle and double metal locks for convenient and safe storage; keeping all accessories in place and providing portability; widely used on installing and repairing wire pipeline; signal lamp and instrument on construction sites; metallurgy; petrol; electronics; electrical appliance; chemical industry; ship and machinery; etc.
Specification:

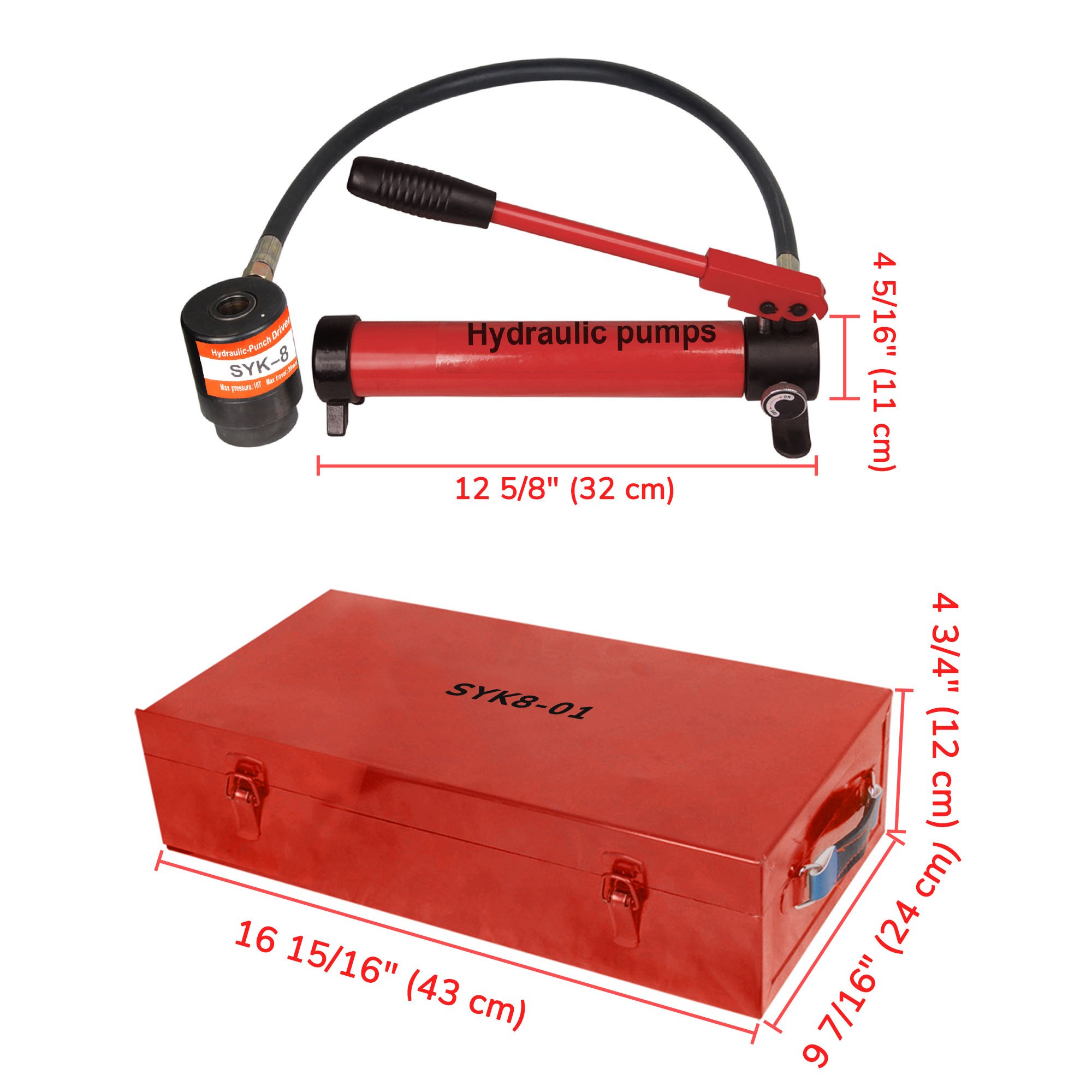

- Pump Dimension(LxW): 12 5/8" x 4 5/16" x 4 5/16" (32 x 11 x 11 cm)
- Metal Case Dimension(LxWxH): 16 15/16" x 9 7/16" x 4 3/4" (43 x 24 x 12 cm)

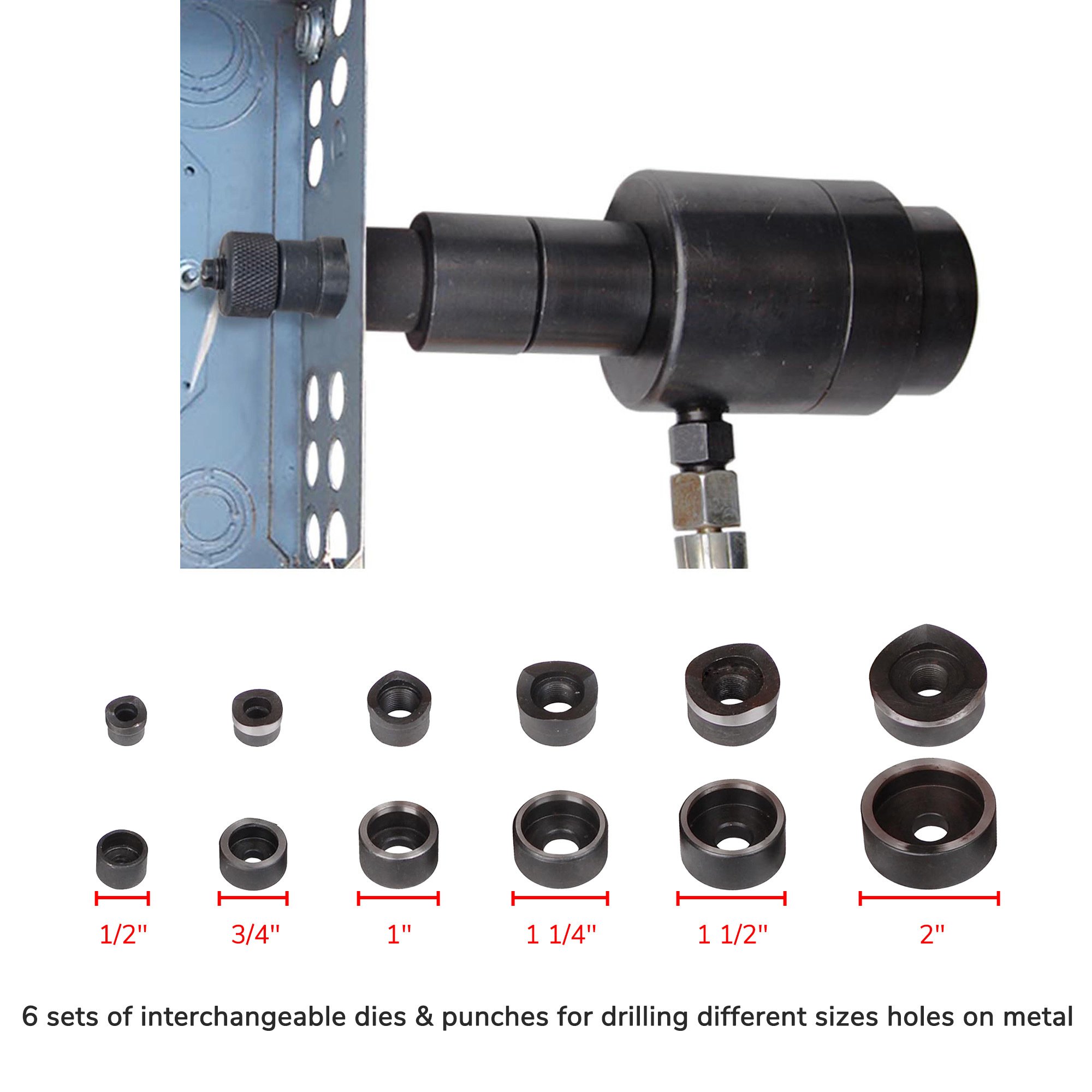

- 6 Dies & Punches Sizes: 1/2"; 3/4"; 1"; 1 1/4"; 1 1/2"; 2"
- Drilling Hole Size: 7/8" (22.5mm); 1 1/8" (28.3mm); 1 3/8" (34.6mm); 1 11/16" (43.2mm); 1 15/16" (49.6mm); 2 7/16" (61.5mm)
- Draw Studs Sizes(LxDia.): 3 1/8" x 5/16" (7.9 x 0.8 cm); 3 3/16" x 5/16" (8.1 x 0.8 cm)
- Max Pressure: 10 ton
- Material: 45# Steel; 40Cr Steel
- Max Thickness for Iron: 1/8" (11 gauge)
- Max Thickness for Stainless Steel: 1/16" (16 gauge)
- Net Weight: 23.1 Lbs (10.5 kg)

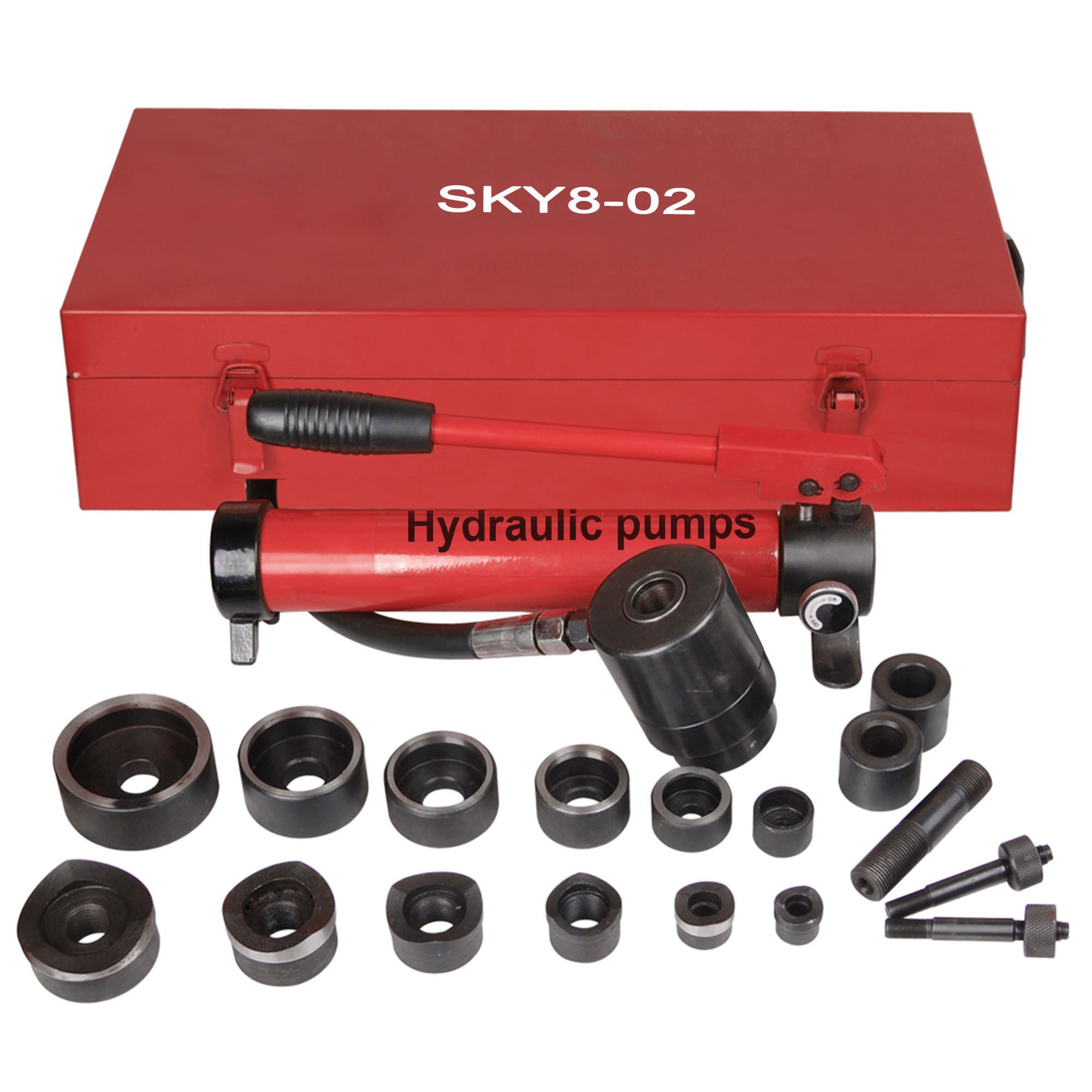

Package Content:

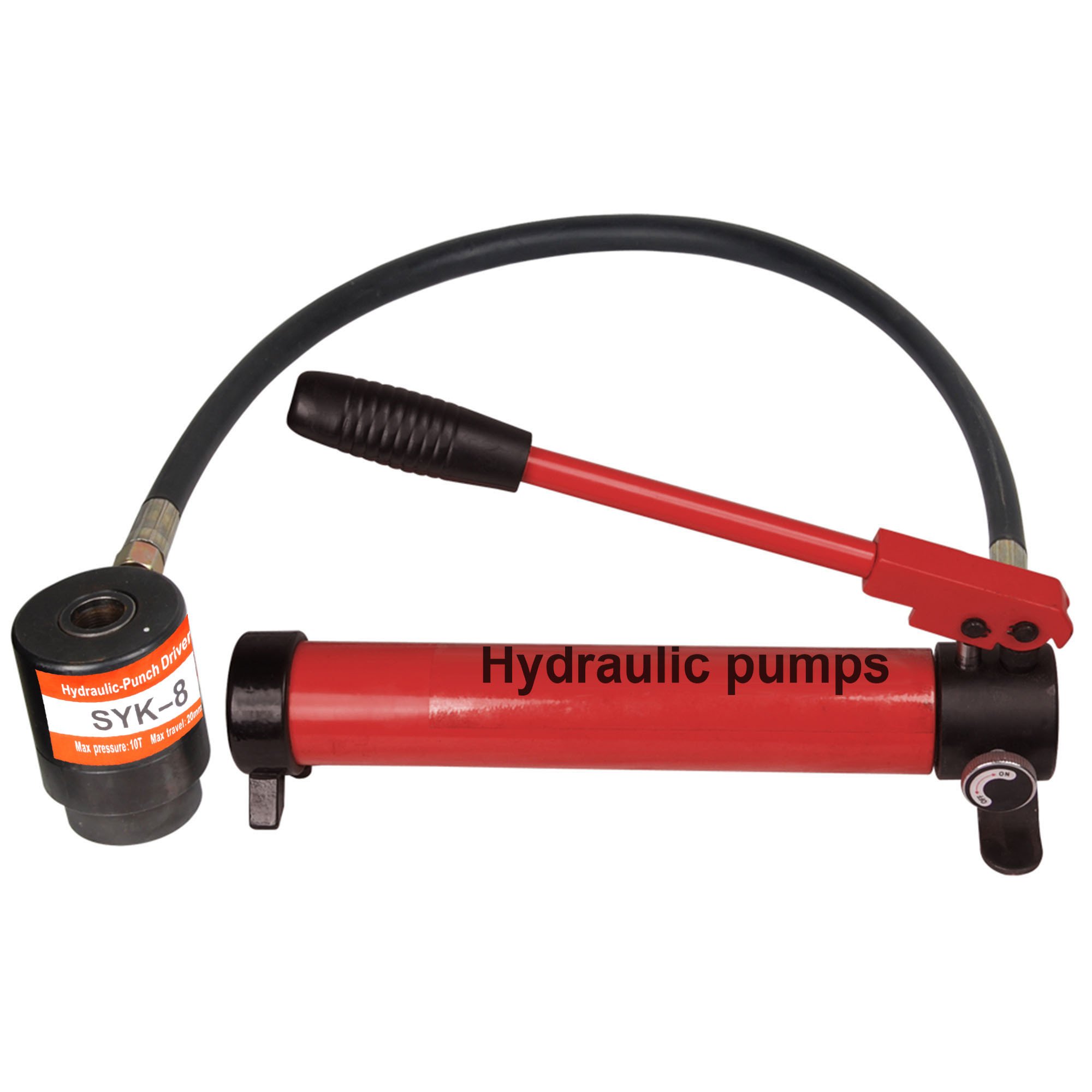

- 1x 10-Ton Pump
- 6 Sets of Dies & Punches
- 2x Draw Studs
- 1x Piston Shaft
- 2x Spacers
- 1x Metal Carrying Case
- 1x Manual
NOTICE: Do Not Operate The Pump After Ram Motion Stops. Continuing to Operate The Pump Lever After The Ram Stops Will Damage The Ram
